Context-aware completion
Top-level keys, nested component keys, platform: values, list items, enums and booleans — plus ${substitution} names, triggers (on_*) and automation actions. Works in package-only configs too.
CLion · IntelliJ IDEA · PyCharm · 2024.2+
ESPHome, right in your IDE.
Context-aware completion — down to individual LVGL widget properties —
live validation from the real esphome config, hover docs,
go-to / rename / find-usages, and one-click compile, run &
flash. All inside the JetBrains IDE you already use.
Free & open source (Apache-2.0). Bring your own esphome, or let the plugin run it in a managed venv or Docker.
Everything ESPHome, with IDE smarts
The plugin models the full ESPHome component catalog, so completion and docs match what the compiler actually accepts.
🧩
Full LVGL support
The complete lvgl: tree: every widget type, its properties, and nested widgets — driven by ESPHome's own language schema, resolved lazily so recursive layouts complete correctly.
✅
Real validation
Runs the actual esphome config in the background and underlines reported errors on the exact lines — no second-guessing from a hand-written schema.
🔎
Navigation
Go-to-definition, find-usages and rename for component id:s and substitutions. Id-reference completion offers only the in-scope ids of the right type.
📖
Hover documentation
Type, requiredness, default, range, units and allowed values for any field — with a link straight to the ESPHome docs — on hover or Ctrl+Q.
⚡
Compile, run & flash
Run configurations that invoke ESPHome to compile, run, upload, logs or clean — with output in the Run console. More below ↓
📟
Live device window
Connect to a running device over the native API and watch its entities update live — with icons and on-off toggles for switches, lights and fans. Plaintext and encrypted (encryption:) APIs, no extra dependency.

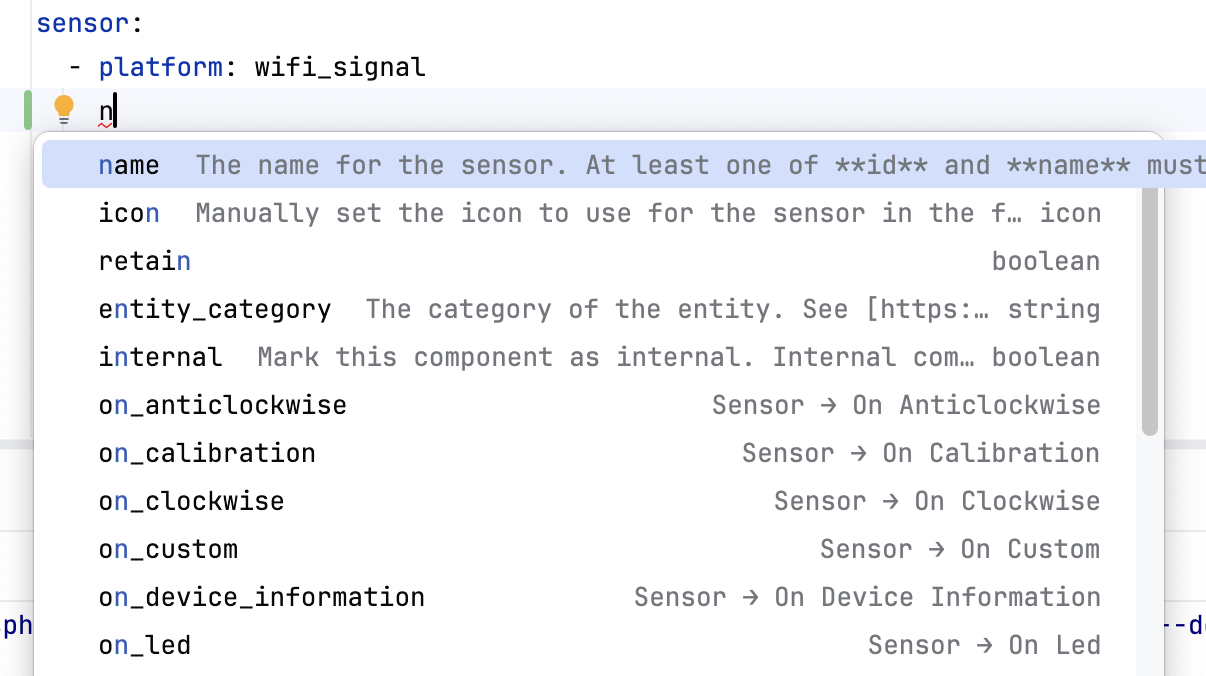

Completion
Context-aware, with docs inline
Type a key and the plugin offers exactly what fits the context — with each option's value type and a one-line description from the catalog, so you pick the right thing without leaving the file.
- Keys,
platform:values, enums, booleans, ids - Inline type (
string,boolean, …) and docs - Works in package-only configs too

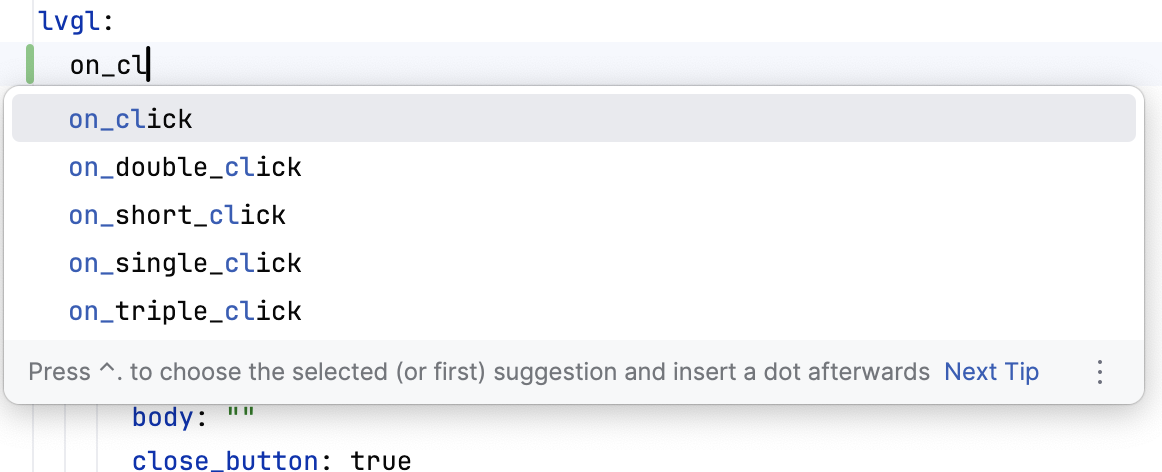

LVGL
Completion that knows your widgets
Start typing inside an lvgl: block and the plugin offers the right keys for the context — widget triggers, properties, and their value types — all the way down the nested widget tree.
- Every widget type and property from the language schema
- Nested widgets resolved recursively
- Value type shown inline (
boolean,string, …)

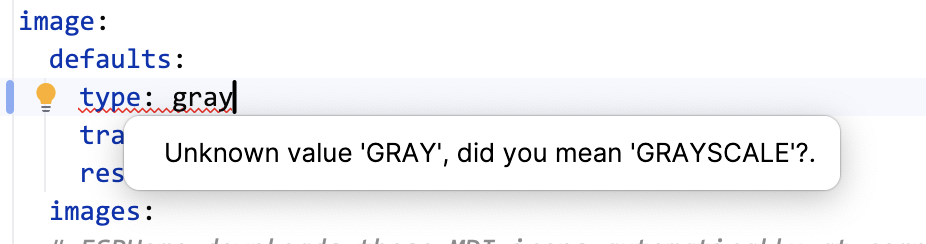

Validation
The compiler's own verdict, inline
Instead of approximating ESPHome's rules, the plugin runs esphome config and maps each reported problem back to the offending line — so what the editor flags is exactly what a build would reject.
- Background
ExternalAnnotator, no editor lag - Errors mapped to precise line/column
- Runs on the same backend as your runs (local / venv / Docker)
- Unresolved-id & unresolved-substitution inspections, with quick-fixes

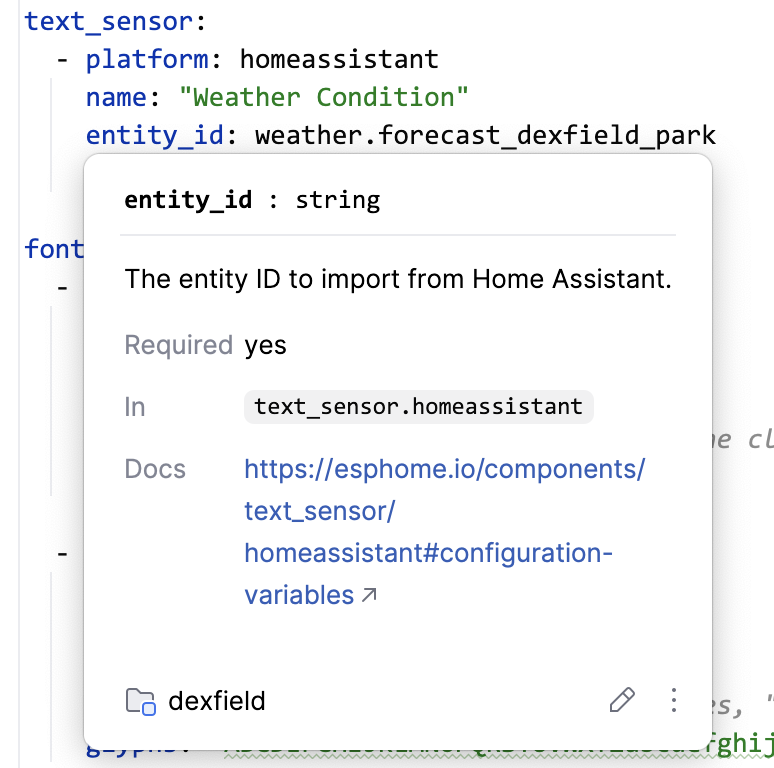

Navigation & docs
Jump, rename, and read the docs in place
Ids and substitutions become first-class symbols: Ctrl-click to their definition, rename them everywhere at once, or list every usage. Hover any key for its type, default and a docs link.
- Go-to / find-usages / rename for ids & substitutions
- Type-aware id completion (only valid targets)
- Field docs sourced from the catalog

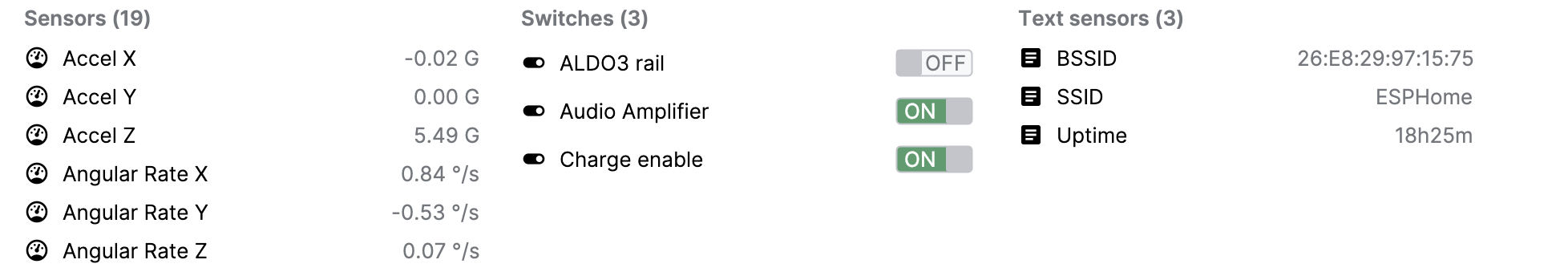

Live device window
Watch — and control — a running device
Connect over the native API (plaintext or encrypted) and see every entity update live — grouped by type, each with an icon. Toggle switches, lights and fans, or press a button, right from the IDE.

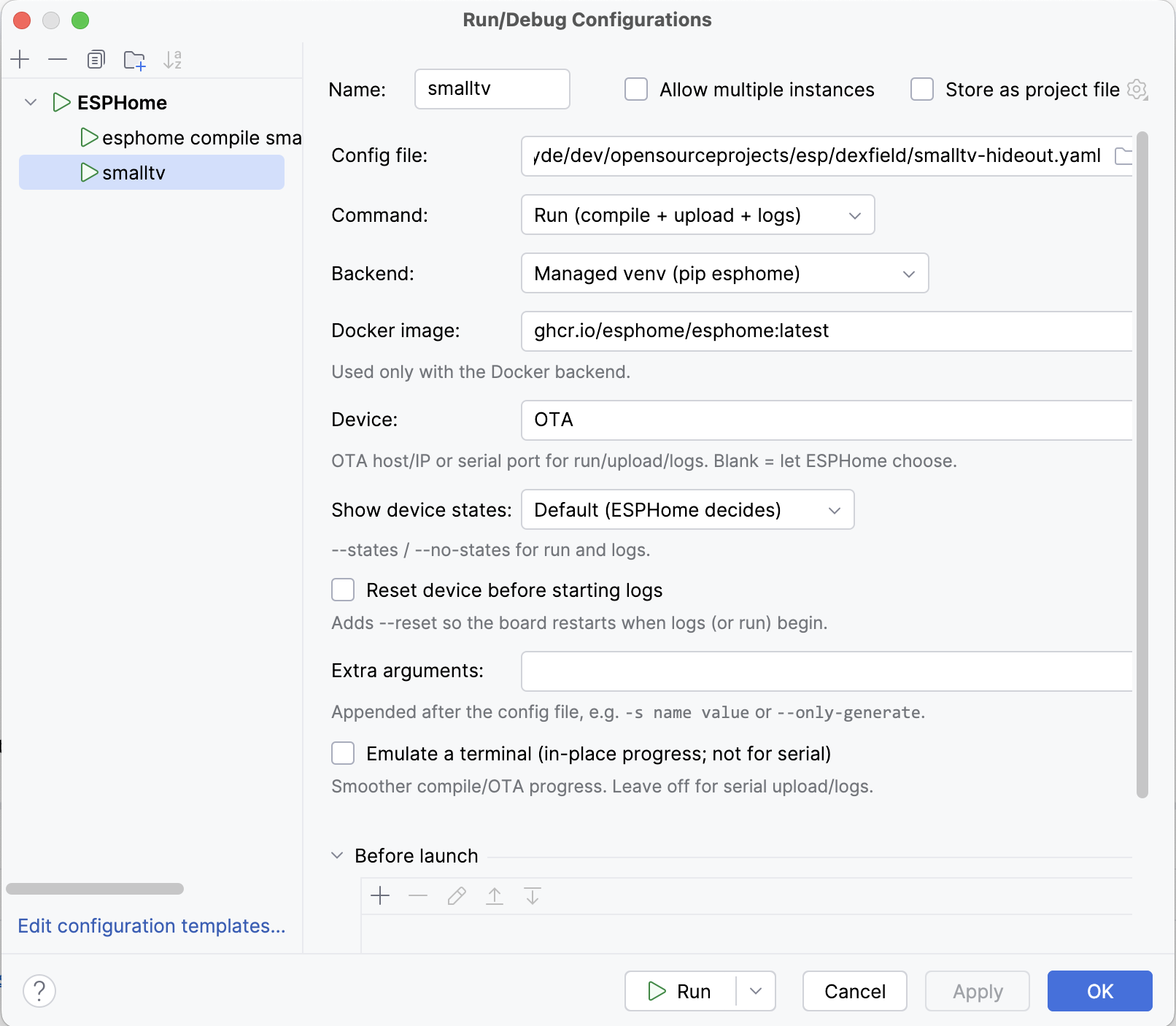

Compile, run & flash — without leaving the IDE
Right-click any config (top-level esphome: or packages:) → Run, or build an ESPHome run configuration by hand. Output streams to the Run console with stop / re-run.
Commands
- compile
- run
- upload
- logs
- clean
Per-run options
--device— OTA host/IP or serial port- State reporting (
--states/--no-states) - Reset device before logs (
--reset) - Free-form extra arguments
- Emulate a terminal — in-place compile/OTA progress
Three ways to run ESPHome
🖥️ Local
The esphome on your PATH (or set under Settings → Tools → ESPHome). Full capability, including serial flashing.
📦 Managed venv
A plugin-managed Python venv created with one click. Pick a version — blank = latest, beta = latest pre-release, dev or a branch/tag = from git, 2025.7.0 = that release. No global install, full serial support.
🐳 Docker
The official ghcr.io/esphome/esphome image — great for compile and OTA, with an optional shared cache. Serial flashing doesn't work in Docker on macOS (the VM has no USB passthrough) — use Local or the venv there.
Get started in two minutes
-
Install the plugin
From Settings → Plugins → Marketplace, search ESPHome, install and restart. (Or grab the zip from Releases → Install Plugin from Disk.)
-
Pick a backend
Under Settings → Tools → ESPHome, choose how ESPHome runs: Local (your
PATHesphome), a managed venv, or Docker. Both runs and background validation use it, so there's nothing else to wire up. -
Open a config & go
Open any file with a top-level
esphome:(orpackages:) key. Completion, hover docs and validation light up immediately. Right-click → Run to compile or flash.
